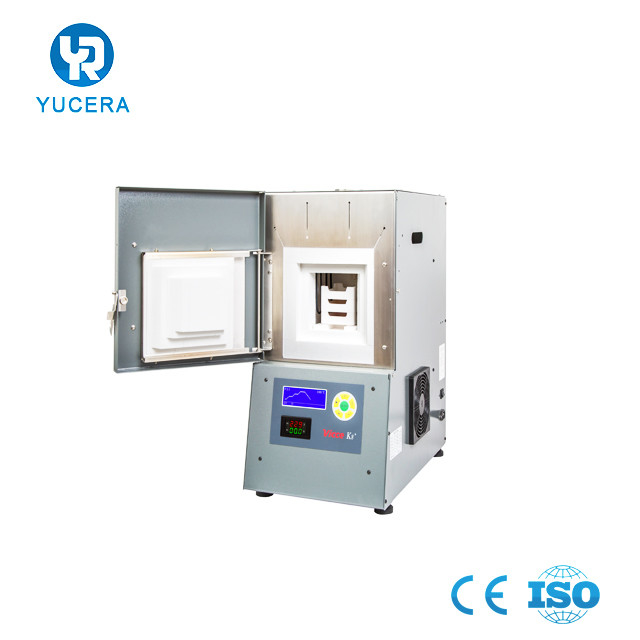

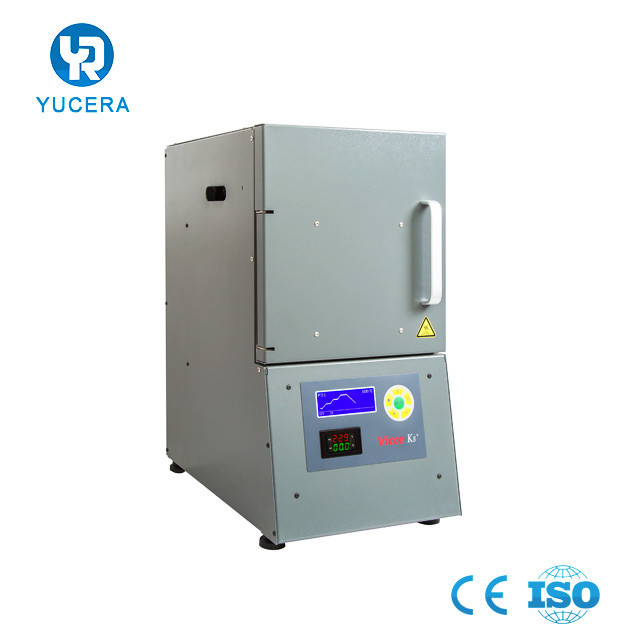

CAD CAM Dental Sintering Furnace For Digital Zirconia Block Sintering Oven Equipment

Basic Information
Place of Origin: China
Brand Name: Yucera
Certification: CE/ISO
Model Number: zirconia sintering oven
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: 1 piece for one package
Delivery Time: 15 days
Payment Terms: negotiation
Supply Ability: 20000pcs/month
Detail Information
Maximum Temperature: 1700℃ Type: Open/Close, Dental Sintering Furance
Heating Rate: 10℃/Min Size: 515*320*620
Name: Dental Sintering Furnace
High Light:

CAM Dental Sintering Furnace

,

CAD Dental Sintering Furnace

,

CAD zirconia sintering furnace


Product Description

CAD CAM Dental Sintering Furnace For Digital Zirconia Block Sintering Oven Equipment



♠ Wholesale YUCERA Dental Equipment Dental Sintering Furance For Dentures



♠ Dental Zirconia Sintering Furnace Heating Method

The two common heating methods used by sintering furnaces are ceramic elements and microwaves.

Molybdenum disilicide (MoSi2) is the most common material used for heating elements. Some furnaces with these elements are capable of achieving temperatures as high as 1,800°C. While they are more expensive than other materials, MoSi2 elements are generally very stable, maintaining a constant electrical resistance over time.

Silicon carbide (SiC) elements are gaining popularity. They are self-supporting and lend themselves to span distances that MoSi2 typically cannot cover. SiC elements are limited to temperatures around 1,600°C. They are less expensive than MoSi2 elements but their electrical resistance tends to increase over time, which will prompt more frequent replacement.

Microwave sintering is one of the newest sintering options. Monoclinic zirconia does not respond to microwave energy directly. Microwave sintering ovens require a susceptor plate and often susceptor material in the sintering trays that absorb microwave energy converting it to heat. This technique is used in residential microwave ovens to help cook or crisp certain frozen food products. Microwave ovens can be used for high-speed sintering and can be scaled for larger volume capacity. Cooling of the operating equipment b comes the challenge, but can be ove come with auxiliary cooling systems.



♠ Dental Zirconia Sintering Furnace Featrues

1. Automatic Lifting up and down

2. High temperature chamber material, resistance high temperature 1700 ℃

3. Programmable controlled,after sinter, the tray will automatic come down to reduce whole heating time

4. 7" Larger Touch panel with PC interface



♠Dental Zirconia Sintering Furnace Advantage

 - Excellent in quality

- Easy operation with touch-screen technology

- High process reliability due to constant temperature control

- Perfect sintering effect

- Save time and electricity, only half the  power consumption of normal sintering furnace.

- Non-microwave heating, stable performance

- The fastest program only cost 169 minutes, slow sintering and fast sintering integration

- Large capacity, three layers sinterable at one time

- Sintered state showed by Full LCD

- 20 sintering curves

- There are unique advantages sintering imported zirconia blocks

- Oversized sintering furnace

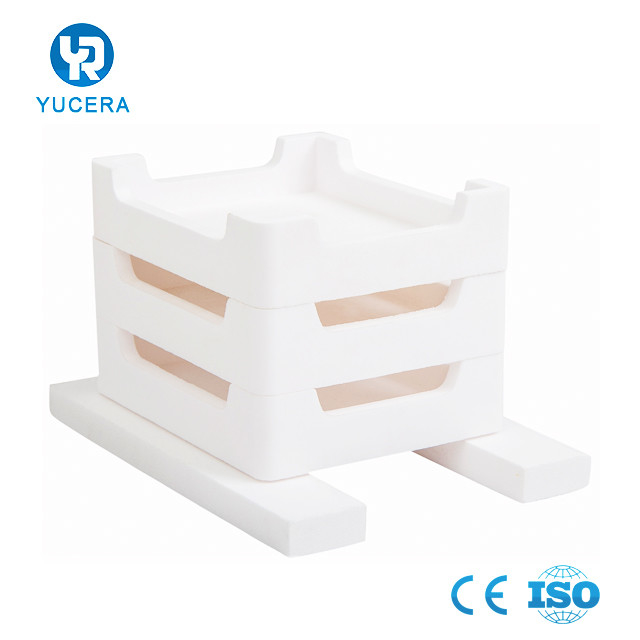

- three layers sintering box available

- Intelligent control display



Dental Zirconia Sintering Furnace parameters



Rated voltage/frequency

220V±10%/50HZ

Rated power

2000W

Maximum load temperature

1600 ℃

Protection level

IP21

Fuse

1) 2x~380V 16A 2) 250V 0.5A 3) 250V 1A

Fast fuse

~500V 32A

Net weight

62kg

Size

515*320*620mm
