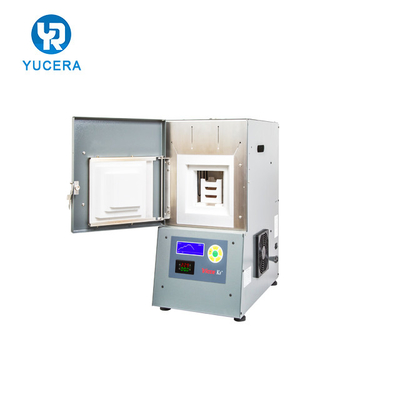

Fast Speed 2000W 220V 50HZ Dental Sintering Furnace

Dental Laboratory Zirconia Blocks CAD CAM Speed Sintering Oven

Sintering Profile

Zirconia manufacturers provide a r commended sintering temperature profile for their material. This profile typically includes a temperature ramp rate, final temperature, hold time, and sometimes a cool down ramp rate (Figure 2). Varying from this profile may cause deviations from the published specifications for density, strength, and translucency. Different zirconia blends, such as High Strength for bridge frameworks or Ultra Translucency for full-contour restorations, even from the same manufacturer, may have different sintering profiles.

A typical sintering cycle may run from 6 to 8 hours depending on ramp rates, final temperature, and hold time. Some zirconia manufacturers offer r commendations on high-speed sintering temperature profiles and indications. Others specifically do not endorse high-speed sintering, or are silent on the subject.

Dental Sintering Furnace Programming

Most of today’s porcelain furnaces are totally programmable. Many different porcelains, stains, and materials have forced manufacturers to make furnaces programmable and be able to store different programs for easy retrieval.

Early sintering furnaces typically only offered a single, fixed sintering profile. Some furnaces had options for several pre-programmed cycles. Initially, there were not many zirconia options available, and most manufacturers r commended very similar sintering profiles.

Today, with so many different zirconia suppliers and formulations, most furnaces are programmable. Ramp rates, final temperature, hold time, and sometimes a cooling rate can all be manually programmed into the furnace, usually by pressing a series of buttons on the front. Some of the more advanced furnaces are not only programmable, but have built-in memory so multiple sintering profiles may be stored and recalled for a specific production run, just like today’s porcelain furnaces.

Dental Sintering Furnace Advantage

- Excellent in quality

- Easy operation with touch-screen technology

- High process reliability due to constant temperature control

- Perfect sintering effect

- Save time and electricity, only half the  power consumption of normal sintering furnace.

- Non-microwave heating, stable performance

- The fastest program only cost 169 minutes, slow sintering and fast sintering integration

- Large capacity, three layers sinterable at one time

- Sintered state showed by Full LCD

- 20 sintering curves

- There are unique advantages sintering imported zirconia blocks

- Oversized sintering furnace

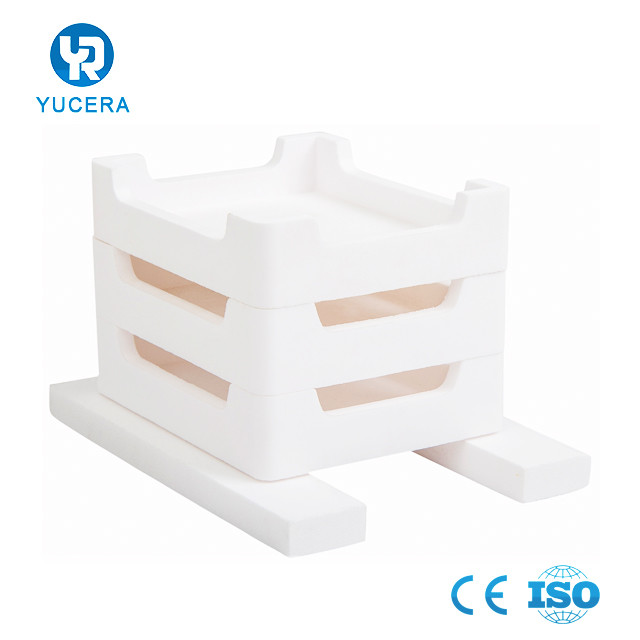

- three layers sintering box available

- Intelligent control display

Product parameters

Rated voltage/frequency                      220V±10% / 50HZ
Rated power                                         2000W
Maximum load temperature                 1600 ℃
Protection level                                     IP21
Fuse                                                     1) 2x~380V 16A    2) 250V  0.5A    3)  250V  1A
Fast fuse                                              ~500V  32A
Net weight                                            62kg
Size                                                      515*320*620mm



Our service



YUCERA is professional in manufacturing Dental Zirconia blocks over 20 years . such as HT(high translucence), ST(Super translucence), UT(Ultra translucence),pre-shaded block and
multilayer. And offer oral lab solution products, such as 3D scanners, milling machine, sintering furnace, burs.
