| MOQ: | Negotiation |
| Price: | Negotiation |
| Standard Packaging: | 20 or 30 pieces zirconia blocks in one Carton boxes |
| Delivery Period: | 5-8 work days |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 60000 pieces per month |

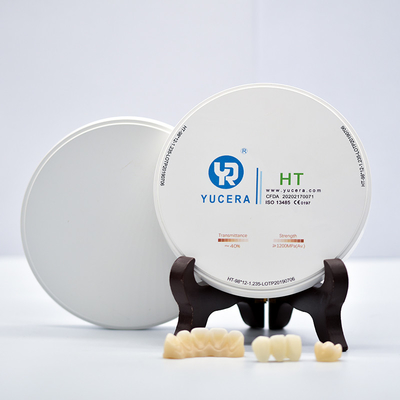

1200HV Dental Zirconia Disc For Cad Cam Cnc Milling Machine
Yucera huge zirconia block for cad cam cnc milling machine dental laboratory zirconia disc
High Translucent HT zirconia disc is made of high tranclucent zirconium oxide(40% light transmittance), that guarantees natural tooth looking. With extreme flexural strength( 1200Mpa).
Technical Parameter of HT Ceramic Zirconia Discs:
| Name | Yucera HT Ceramic Zirconia Discs |
| Sintered Density of HT Ceramic Zirconia Discs | 6.07 ± 0.03g/cm3 |
| Hardness of HT Ceramic Zirconia Discs | 1200HV |
| Sintering Temperature of HT Ceramic Zirconia Discs | Recommend 1530℃ |
| Bending Strength of HT Ceramic Zirconia Discs | 1200Mpa |
| Translucency of ST HT Ceramic Zirconia Discs | 40% |
Features of HT Ceramic Zirconia Discs:
1. 16 Shades Coloring Liquid+3 blench white
2. High Translucency >40%
3. Flexural Strength ≥1200Mpa
4. 100% Safe Lowest Radioactivity of ZrO2 powder
| Opening system | Amann Girrbach system | Zirkon Zahn system |
| 98*10mm | 89*71*10mm | 95*10mm |
| 98*12mm | 89*71*12mm | 95*12mm |
| 98*14mm | 89*71*14mm | 95*14mm |
| 98*16mm | 89*71*16mm | 95*16mm |
| 98*18mm | 89*71*18mm | 95*18mm |
| 98*20mm | 89*71*20mm | 95*20mm |
| 98*22mm | 89*71*22mm | 95*22mm |
| 98*mm | 89*71*25mm | 95*25mm |
Recommend sintering step and temperature for HT dental zirconia disc:
| HT/ST Dental Zirconia Block Sintering Curve (1-5) | ||||
| Sintering step | Start Temperature(℃) | End Temperature(℃) | Time(Min) | Rate(℃/Min) |
| Step 1 | 20 | 300 | 30 | 9.3 |
| Step 2 | 300 | 1200 | 150 | 6 |
| Step 3 | 1200 | 1530 | 110 | 3 |
| Step 4 | 1530 | 1530 | 120 | 0 |
| Step 5 | 1530 | 800 | 100 | -7.3 |
| Step 6 | 800 | natural cooling 20 | 120 | --6 |
| HT/ST Dental Zirconia Block Sintering Curve (10 units) | ||||
| Sintering step | Start Temperature(℃) | End Temperature(℃) | Time(Min) | Rate(℃/Min) |
| Step 1 | 20 | 300 | 30 | 9.3 |
| Step 2 | 300 | 1200 | 190 | 4.7 |
| Step 3 | 1200 | 1530 | 150 | 2.2 |
| Step 4 | 1530 | 1530 | 120 | 0 |
| Step 5 | 1530 | 800 | 120 | -6 |
| Step 6 | 800 | natural cooling 20 | 120 | -6 |
Feedbacks for HT Dental Ceramic Zirconia Discs:
FAQ
Q: What products do your factory produce ?
A: We mainly produce dental ceramic zirconia block, PMMA & Wax disc and corresponding CAD/CAM equipment, 3D printing equipment and other related dental products. As professional oral materials supplier, we can provide digital dental materials, dental equipment, and full range of digital products and services.
Q: What about your standard delivery date for zirconia block?
A: Normally delivery time for zirconia block: 2-20days. According to stocks and orders for production.
Q: What about your package for zirconia block?
A: We use standard export packing for zirconia block.To make products safe ,no demage 100%
|
|
