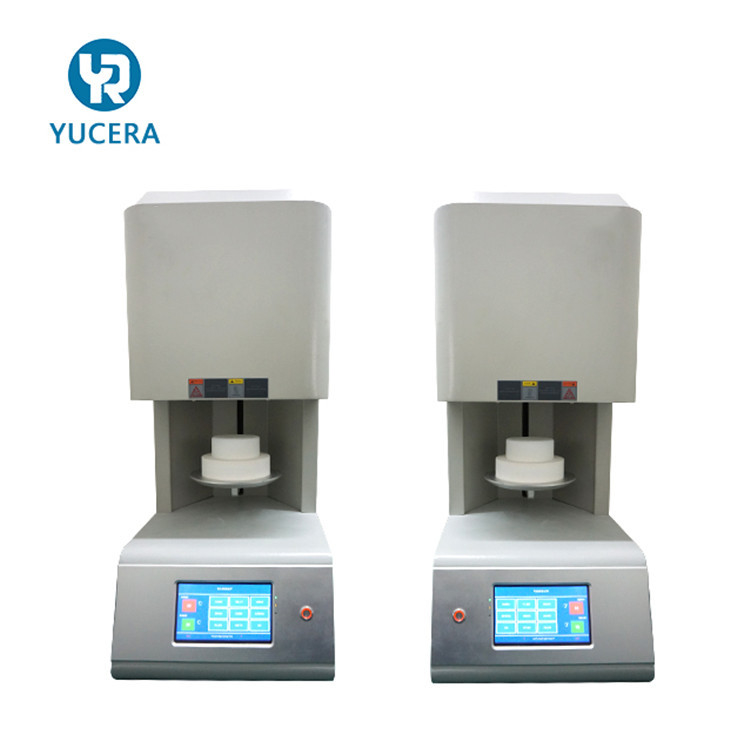

PID 30min Zirconia Sintering Furnace 1700C Dental Lab Equipment

Basic Information
Place of Origin: China
Brand Name: Yucera
Certification: CE/ISO
Model Number: Zirconia Sintering Furnace
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: 1 piece for one package
Delivery Time: 15 days
Payment Terms: negotiation
Supply Ability: 20000pcs/month
Detail Information
Type: Open/Close, Zirconia Sintering Furnace Gurantee: Two Years
Chamber Size: Dia100xH100mm Or 100x100x100mm Temperature Accuracy: ± 1 °C
Power: 1.5KW Max. Temperature: 1700 °C (<2hour)
High Light:

1700C Dental Lab Equipment

,

PID Zirconia Sintering Furnace

,

30min Zirconia Sintering Furnace


Product Description

China Factory Price 1700C Max Dental Lab Equipment Zirconia Sintering Furnace 30min Dental Zirconia Block Oven For Tooth



YUCREA is a professional manufacturer for dental equipment and dental consumable accessories such as dental sintering furnace; dental milling machine; dental LAB bur; zirconia block; wax; Pmma and so on



Chamber size Dia100xH100mm or 100x100x100mm
Max. temperature 1700 oC (<2hour)
Working temperature 800-1600 oC
Temperature controlling
  • PID automatic control via SCR (Silicon Controlled Rectifier)power control with phase angle fired, current limiting resistor.
  • Touch screen panel which can store 30pcs different programs
  • Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
  • Over temperature protection and alarm allows for operation without attendant.
Temperature accuracy ± 1°C
Temperature Uniformity ± 5°C
Heating rate 0-30 °C/min
Thermocouple B type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube
Heating element U type MoSi2 heating elements (4pcs)
Furnace Chamber

Three layers of ceramic fiber insulation materials

  • First layer: 1800°C ceramic fiber board
  • Second layer: 1600°C ceramic fiber board
  • Third layer: 1260°C ceramic fiber board
Furnace structure Double layer steel casing with dual cooling fan, surface temperature below 60oC
Furnace door
  • Elevator opening with platform
  • Power cutting off when furnace door open
Outer dimension About 550X420X810mm
Working voltage 220V, 50HZ/60HZ, 1 phases (As per your order)
Rated power 1.5KW





Character for Sintering Dental Furance:

1.This 1700C Dental zriconia sintering furnace is perfectly suited for sintering zirconia crown

2.The special high purity Molybdenum disilicide heating elements offer best possible protection against chemical interaction between charge and heating elements.

3.Automatic program for heating, platform moving. It’s very convenient for dental crown firing.

4.This 1700C Sintering Dental Furance is perfectly suited for sintering zirconia crown

PID 30min Zirconia Sintering Furnace 1700C Dental Lab Equipment 0

PID 30min Zirconia Sintering Furnace 1700C Dental Lab Equipment 1

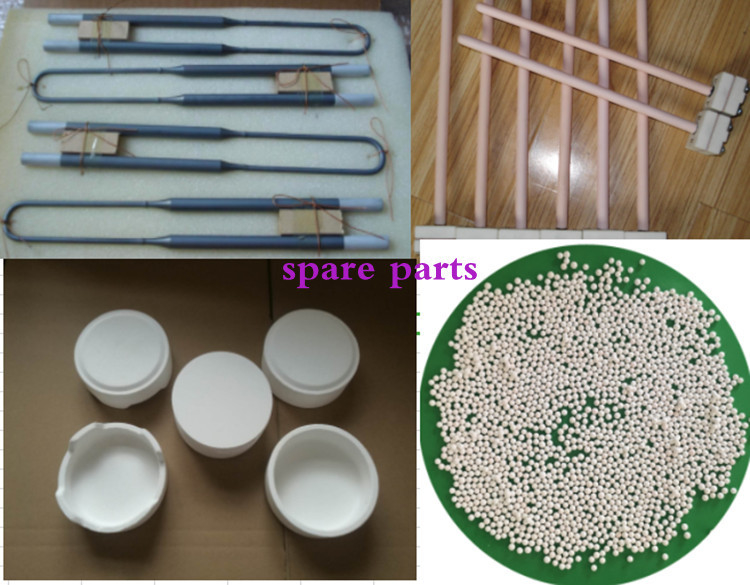

Consumable parts of Zirconia Block furance for optional:

PID 30min Zirconia Sintering Furnace 1700C Dental Lab Equipment 2PID 30min Zirconia Sintering Furnace 1700C Dental Lab Equipment 3
