1700C Zirconia Sintering Furnace 1.5KW U Type MoSi2 Heating Elements

Basic Information
Place of Origin: China
Brand Name: Yucera
Certification: CE/ISO
Model Number: 1700C Max. Zirconia Sintering Furnace
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: 1 piece for one package
Delivery Time: 15 days
Payment Terms: negotiation
Supply Ability: 20000pcs/month
Detail Information
Chamber Size: Dia100xH100mm Or 100x100x100mm Working Temperature: 800-1600 C
Heating Element Accuracy: U Type MoSi2 Heating Elements (4pcs) Power: 1.5KW
Heating Rate: 0-30 C /min Working Voltage: 220V, 50HZ/60HZ, 1 Phases (As Per Your Order)
High Light:

1700C Zirconia Sintering Furnace

,

Zirconia Sintering Furnace 1.5KW

,

MoSi2 Heating Elements Zirconia Sintering Oven


Product Description

1700C Max. Dental Lab Equipment Zirconia Sintering Furnace for Tooth



Introduction of Zirconia Sintering Furnace

Chamber size Dia100xH100mm or 100x100x100mm
Max. temperature 1700 oC (<2hour)
Working temperature 800-1600 oC
Temperature controlling
  • PID automatic control via SCR (Silicon Controlled Rectifier)power control with phase angle fired, current limiting resistor.
  • Touch screen panel which can store 30pcs different programs
  • Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
  • Over temperature protection and alarm allows for operation without attendant.
Temperature accuracy ± 1 oC
Temperature Uniformity ± 5°C
Heating rate 0-30 oC /min
Thermocouple B type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube
Heating element U type MoSi2 heating elements
Furnace Chamber

Three layers of ceramic fiber insulation materials

  • First layer: 1800°C ceramic fiber board
  • Second layer: 1600°C ceramic fiber board
  • Third layer: 1260°C ceramic fiber board
Furnace structure Double layer steel casing with dual cooling fan, surface temperature below 60oC
Furnace door
  • Elevator opening with platform
  • Power cutting off when furnace door open
Outer dimension About 550X420X810mm
Working voltage 220V, 50HZ/60HZ, 1 phases (As per your order)
Rated power 2KW



How to control the temperature of zirconia sintering furnace



1) Adopt advanced AI artificial intelligence adjustment algorithm, no overshoot, can achieve any slope rise and fall control, with jump (cycle), run, pause and stop programmable / operational commands.

2) Measurement accuracy: 0.2 level

3) Alarm function: upper limit alarm, input open alarm.

4) 50 sections of program control functions

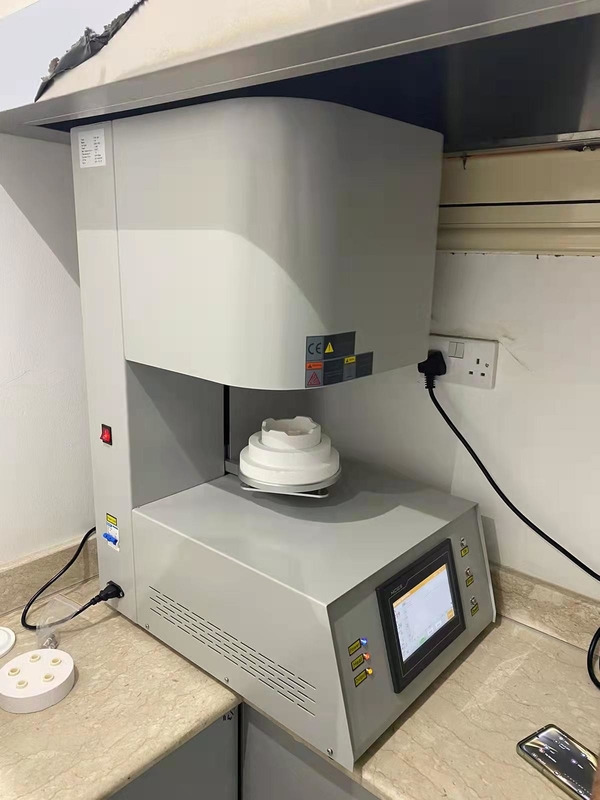

1700C Zirconia Sintering Furnace 1.5KW U Type MoSi2 Heating Elements 0

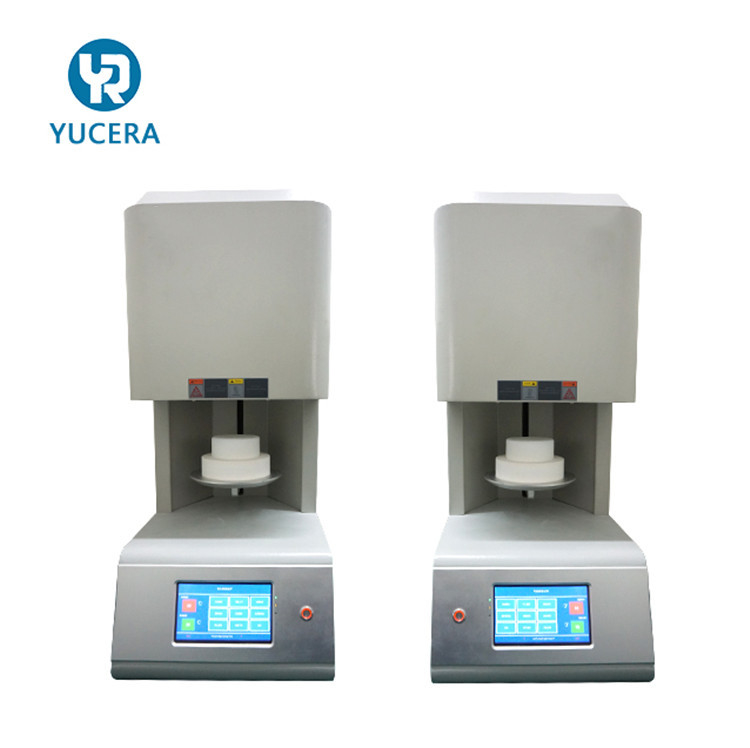

1700C Zirconia Sintering Furnace 1.5KW U Type MoSi2 Heating Elements 1
