| MOQ: | 1 piece |
| Price: | negotiation |
| Standard Packaging: | 1 piece for one package |
| Delivery Period: | 15 days |
| Payment Method: | negotiation |
| Supply Capacity: | 20000pcs/month |

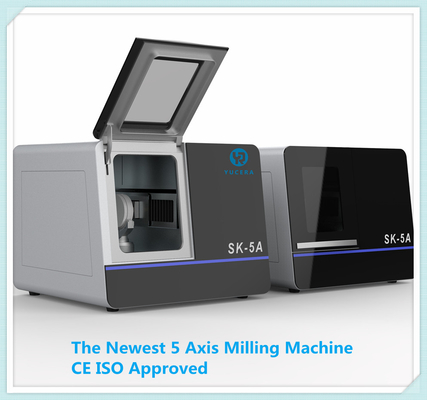

5 Axes Dentaire CAD CAM Milling Machine For Zirconia PMMA Wax
Fraiseuse 5 Axes Dentaire For Zirconia PMMA Wax 5 Axis Dental CADCAM Milling Machine For Odontologia Equipament
Detailed specification of Yucera 5 axis dental milling machine:
| Axis | 5 Axis |
| Cut Method | dry milling |
| Milling Materials | zirconia block, pmma, wax, PEEK |
| Size of milling materials | φ98, thickness(10-30mm) |
| Range of rotation & tling rotation | x/y/z: 105 / 135/ 90 A:360° B:±30° |
| Speed of Principal axis | 0-60000rpm / 500w |
| Driver | Full rotation servo motor drive |
| cutters | 5 tools; φ4mm |
| size of dental 5aixs milling machine | CNC machine:55*56.5*46cm;Host milling machine:45*25*45cm |
| G.W: of dental 5aixs milling machine | CNC machine:95kg; Host milling machine:20kg |
| Compressed Air: | 4.5-7.5bar;50ml/min |
| Min Capacity-Dry: | 3000L/min |
| Power requirement : | 800W;220-230v AC,56/60 hz |
Support language:
English, German, Italian, French, Dutch, Spanish, Polish, Portuguese, Japanese, Korean, Chinese
Characteristics for Yucera 5 axis dental milling machine :
After 2 years of design and development,more than 100 dental labs tested, our Separation of mechanical and electrical control design to get unanimous praise:
1. Horizontal processing-speed can be increased by nearly 20%
2. simplifying maintenance- When the all-in-one machine fails, the after-sales maintenance is more complicated. The split equipment only needs to replace the processing system to complete the update and maintenance;
3.Tool detection sensor with 2um
4.24hours on-line technical support
5.include hyperdent(free)
*Horizontal processing VS Vertical machining,Based on the original stable vertical machining, the horizontal cutting equipment puts the center of gravity lower.
*Vertical processing and horizontal processing are cradle processing,There is not much difference between the two in the layout and processing mode, but due to the excellent stability of horizontal processing, the processing speed can be increased by nearly 20%.
Easy to maintain:
*When the all-in-one machine fails, the after-sales maintenance is more complicated. The split equipment only needs to replace the processing system to complete the update and maintenance;
*The control system is separated from the processing system to reduce the slight damage to the equipment caused by dust
3.How many teeth can SK-5A cut at one time?(Dental CAD CAM 5 Axis Milling Machine)?
*38-40 units crown/bridge.
Innovative fixture design, compared with a metal fixture, the utilization rate of porcelain blocks is increased by 30%
Video
Video
Video
Video
Video
Video
Video
|
|
