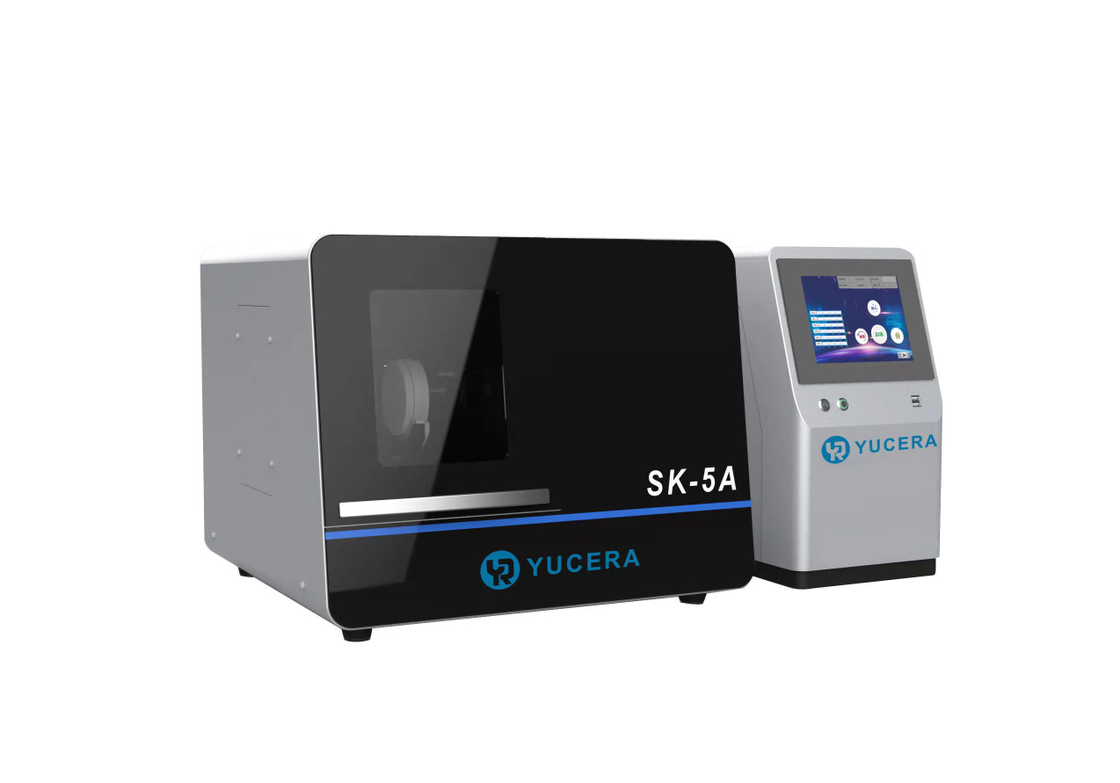

Cad Cam 5 Axis Tooth Milling Machine For Zirconia PMMA Wax PEEK

Basic Information
Place of Origin: China
Brand Name: Yucera
Certification: CE/ISO
Model Number: cad cam 5 axis dental milling machine
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: 1 piece for one package
Delivery Time: 15 days
Payment Terms: negotiation
Supply Ability: 20000pcs/month
Detail Information
Gurantee: 1 Year G. W.: 148KG
Cutting Machine Size: 550*565*460mm Material: Acrylic+Metal
Application: Dental Milling Machine For Zirconia/PMMA/Wax/Peek Blocks Total Power: 800W
High Light:

5 Axis Tooth Milling Machine

,

Cad Cam Tooth Milling Machine

,

5 Axis teeth milling machine


Product Description

Cad Cam 5 Axis Tooth Milling Machine For Zirconia PMMA Wax PEEK



Dental 5 axis milling machine table dental for zirconia block, PMMA and Wax disc



Features of  cad cam 5 axis dental milling machine

1. -Suitable for zirconia blocks , PMMA, Wax and Composite material;
2. -Horizontal processing-speed can be increased by nearly 20%;
3. -Simple maintenance- When the all-in-one machine fails, the after-sales maintenance is more complicated. The seperated equipment only needs to replace the processing system to complete the update and maintenance;
4. -Tool detection sensor with 2um
5. -24hours on-line technical support
6. -Include hyperdent(free)







Shenzhen Yucera Dental Material Co., LTD is a comprehensive enterprise specializing in developing, manufacturing and marketing of Dental Zirconia Ceramic Block, corresponding CAD/CAM equipment, and other related dental products. As professional laboratory materials supplier, we can provide digital dental materials, dental equipment, and full range of digital products and services.



Technology Parameter of cad cam 5 axis dental milling machine:

size Cutting machine: 550x565x460mm
Main machine: 450x250x450mm
Net Weight Cutting machine: 95KG
Host: 20KG
Rotation angle A 360° B:+30°
Power 0.8kw
Milling precision 0.2mm
Tools Library 5
Tool specifications Special tools with a handle diameter of 4mm,
automatic tool change and automatic tool detection.
Processing method five-axis linkage, manual milling
Machinable type inner crown, full crown, bridge, planting bridge, temporary restoration of crown post and core, inlay, bolt, telescopic crown
Maximum Speed 0-60000rmp
Rated working pressure 4.5-6.0bar (no oil and no water)
lnstallation conditions Stable voltage: 220-230V stable pressure ≥ 6.0bar
Humidity: 1 5-35℃ Relative humidity <80%
Transmission interface USB/Ethernet (rear UsB connector, wire connector)
Mill material zirconia. wax.resin. composite materials



Cad Cam 5 Axis Tooth Milling Machine For Zirconia PMMA Wax PEEK 0Cad Cam 5 Axis Tooth Milling Machine For Zirconia PMMA Wax PEEK 1
