Laboratory CAD CAM Dental Milling Machine Mechanical 5 Axis

Basic Information
Place of Origin: China
Brand Name: Yucera
Certification: CE/ISO
Model Number: CADCAM dental milling machine
Minimum Order Quantity: 1 piece
Price: negotiation
Packaging Details: 1 piece for one package
Delivery Time: 15 days
Payment Terms: negotiation
Supply Ability: 20000pcs/month
Detail Information
Milling Materials: Zirconia Blocks , PMMA, Wax,Composite Material G. W.: 148KG
Cutting Machine Size: 550*565*460mm Main Axis Speed: 0-60,000rmp
Application: Dental Milling Machine For Zirconia/PMMA/Wax/Peek Blocks Working Tempressure: 4.5-7.5bar(no Water, No Gasoline )
High Light:

CAM Dental Milling Machine

,

CAD Dental Milling Machine

,

Mechanical teeth milling machine


Product Description

Laboratory CAD CAM Dental Milling Machine Mechanical 5 Axis



Dental 5 axis milling machine table dental for zirconia block, PMMA and Wax disc



Shenzhen Yucera Dental Material Co., LTD is a comprehensive enterprise specializing in developing, manufacturing and marketing of Dental Zirconia Ceramic Block, corresponding CAD/CAM equipment, and other related dental products. As professional laboratory materials supplier, we can provide digital dental materials, dental equipment, and full range of digital products and services.



Technology Parameter of CADCAM dental milling machine

Length, width and height

Cutting machine:550*565*460mm

Main engine :450*250*450mm

Processing methods Five-axis linkage, dry milling
weight

Cutting machine:95KG

Main engine:20KG

Processable type Inner crowns, full crowns, bridges, implant bridges, implant upper restorations, inlays, onlay, veneer, coping etc.
Rotating axis operating angle A:360° B:±30° Main axis speed 0-60,000rmp
Total power 800W Working pressure 4.5-7.5bar(no water, no gasoline )
Cutting precision 0.2mm Installation conditions

Stable voltage:220-230V

Stable air pressure≥6.0bar

Temperature:15-35℃

Relative humidity<80%

Tool magazine capacity 5 Transmission interface USB/Ethernet
Burs specifications

Special props for handle diameter 4mm

Automatic tool change, automatic tool detection

Milling Materials zirconia blocks , PMMA, Wax,Composite material



Advantage of CADCAM dental milling machine

1. Horizontal processing VS Vertical machining
Based on the original stable vertical machining, the horizontal milling machine
puts the center of gravity lower.



2. Vertical and horizontal processing are both cradle processing
(Suitable for small precision parts processing).
There is not much difference between these two in the layout
and processing mode, but due to the excellent stability of horizontal processing, the speed can be increased by nearly 20%.





3. Easy to maintain:
*When the all-in-one machine fails, the after-sales maintenance is more complicated. The seperate machine design only needs to replace the processing system to complete the update and maintenance;
*The control system is separated from the processing system to reduce the slight damage caused by dust for the main engine.

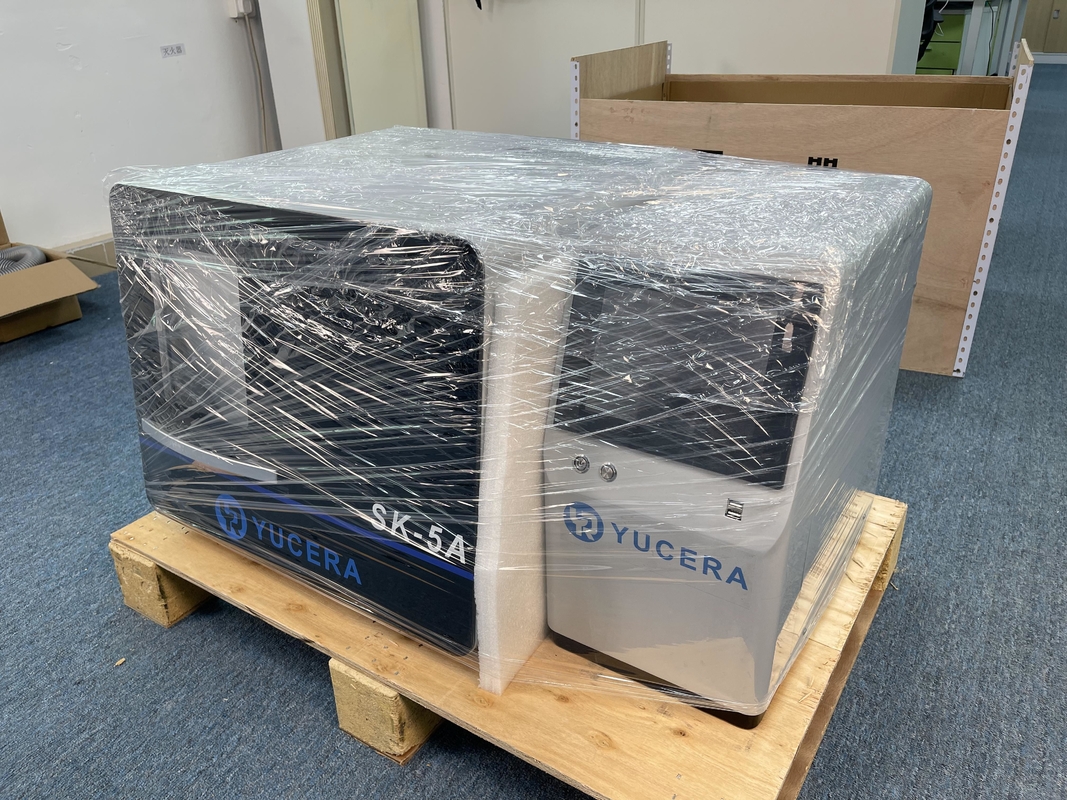

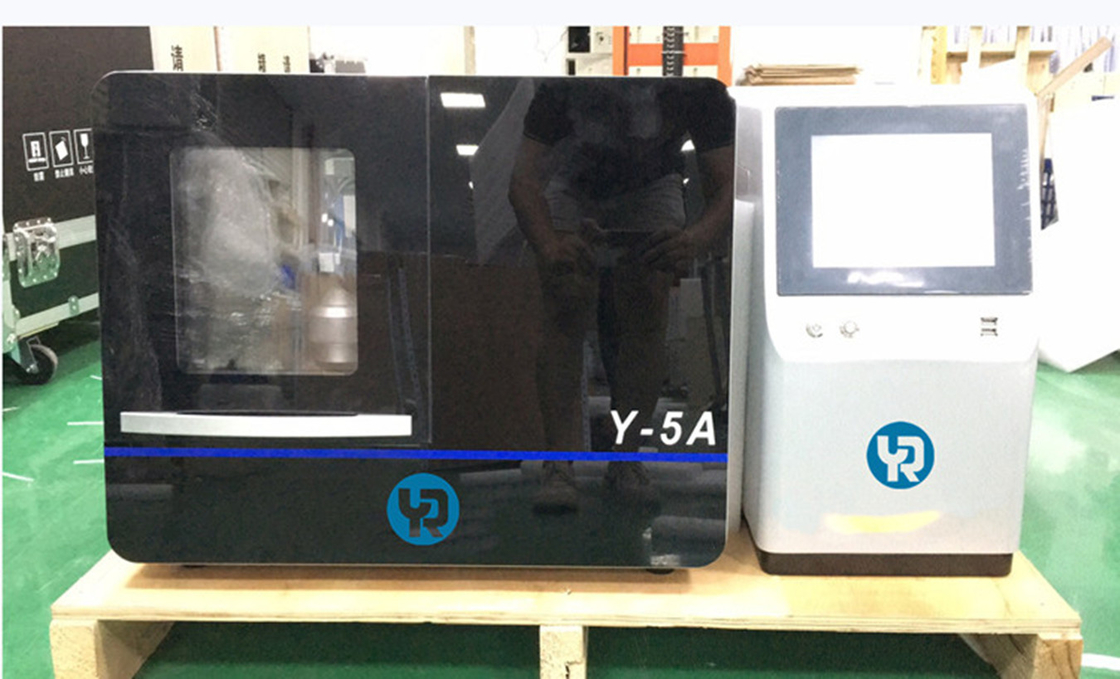

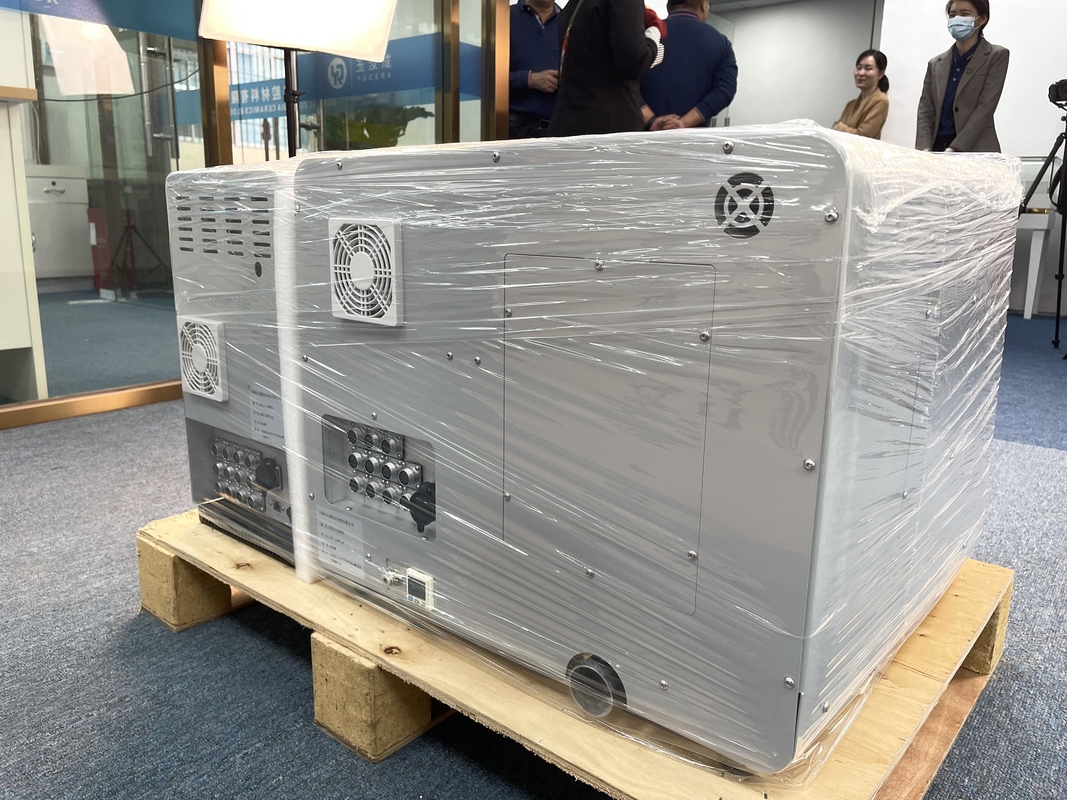

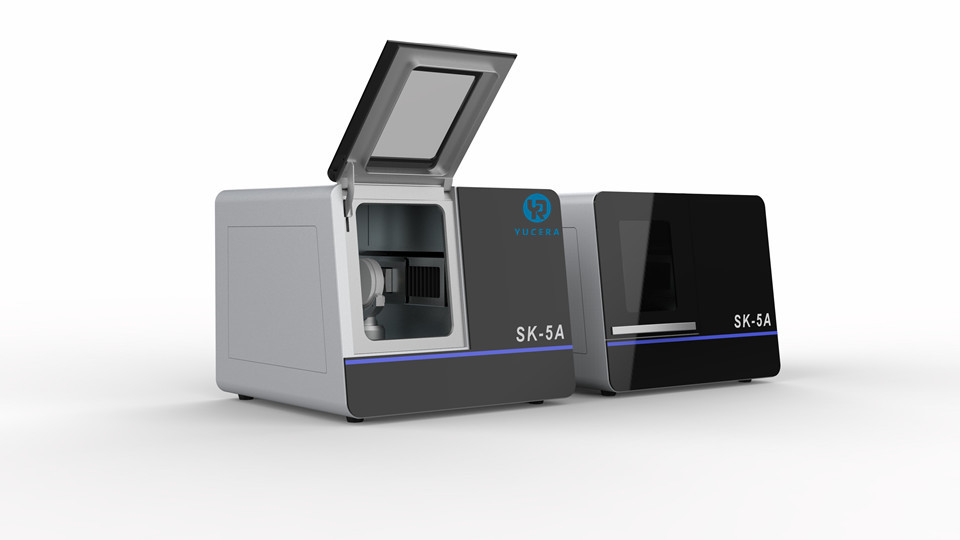

Laboratory CAD CAM Dental Milling Machine Mechanical 5 Axis 0Laboratory CAD CAM Dental Milling Machine Mechanical 5 Axis 1
