| MOQ: | 1 piece |
| Price: | negotiation |

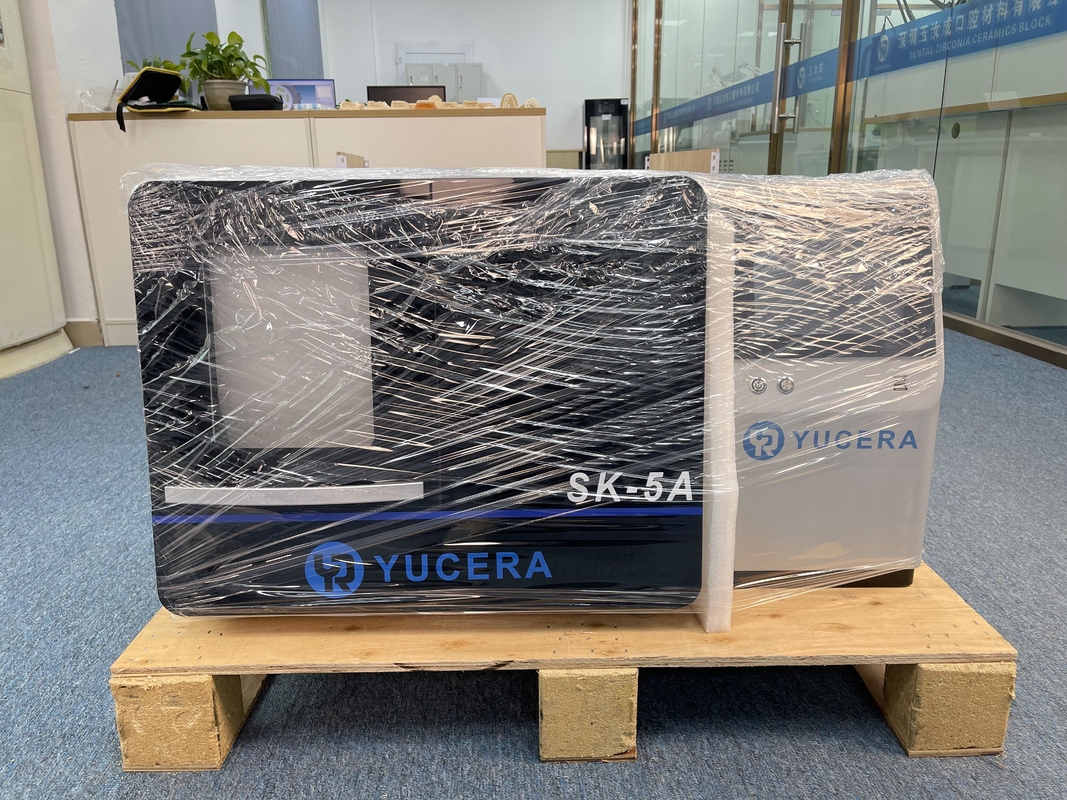

| Standard Packaging: | 1 piece for one package |
| Delivery Period: | 15 days |
| Payment Method: | negotiation |
| Supply Capacity: | 20000pcs/month |

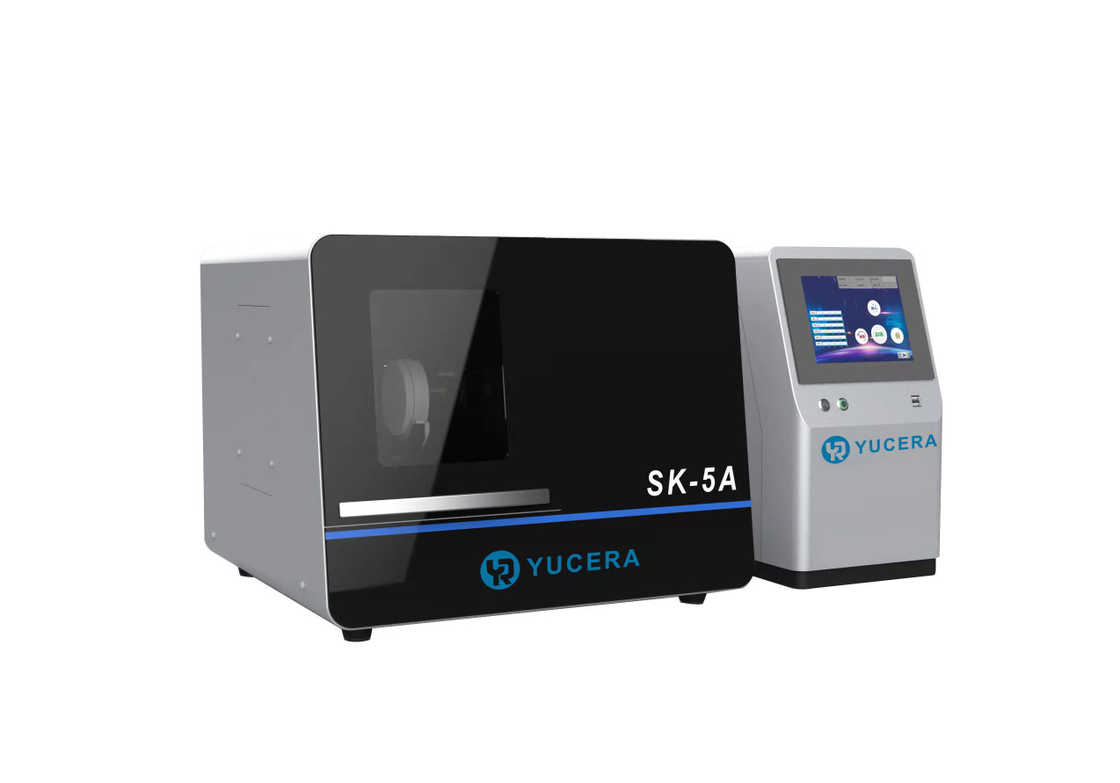

60000 rmp 5 Axis Milling Machine For Zirconia PMMA WAX Dental Lab
Technology Parameter of Dental 5-Axis Milling Machine
| Axis | 5 Axis |
| Cut Method | dry milling |
| Milling Materials | zirconia block, pmma, wax, PEEK |
| Size of milling materials | φ98, thickness(10-30mm) |
| Range of rotation & tling rotation | x/y/z: 105 / 135/ 90 A:360° B:±30° |
| Speed of Principal axis | 0-60000rpm / 500w |
| Driver | Full rotation servo motor drive |
| cutters | 5 tools; φ2.0mm |
| size of dental 5aixs milling machine | CNC machine:55*56.5*46cm;Host milling machine:45*25*45cm |
| G.W: of dental 5aixs milling machine | CNC machine:95kg; Host milling machine:20kg |
| Compressed Air: | 4.5-7.5bar;50ml/min |
| Min Capacity-Dry: | 3000L/min |
| Power requirement : | 800W;220-230v AC,56/60 hz |
Features of Dental 5-Axis Milling Machine
1. -Suitable for zirconia blocks , PMMA, Wax and Composite material;
2. -Horizontal processing-speed can be increased by nearly 20%;
3. -Simple maintenance- When the all-in-one machine fails, the after-sales maintenance is more complicated. The seperated equipment only needs to replace the processing system to complete the update and maintenance;
4. -Tool detection sensor with 2um
5. -24hours on-line technical support
6. -Include hyperdent(free)
Brief Introduction Of Dental 5-Axis Milling Machine
1.CUTTING MACHINE 2.CONNECTION PLATE ON BACK OF CUTTING MACHINE 3.THE HATCH 4.OBSERVE THE WORKING CABIN WINDOW
5.DOOR HANDLE 6.HOST 7.CONNECTING BOARD ON THE BACK OF THE HOST 8.DISPLAY SCREEN 9.OPERATION PANEL
The SK-5A five-axis cutting machine is designed to facilitate digital processing in the field of dental technology and can handle different
types of materials.

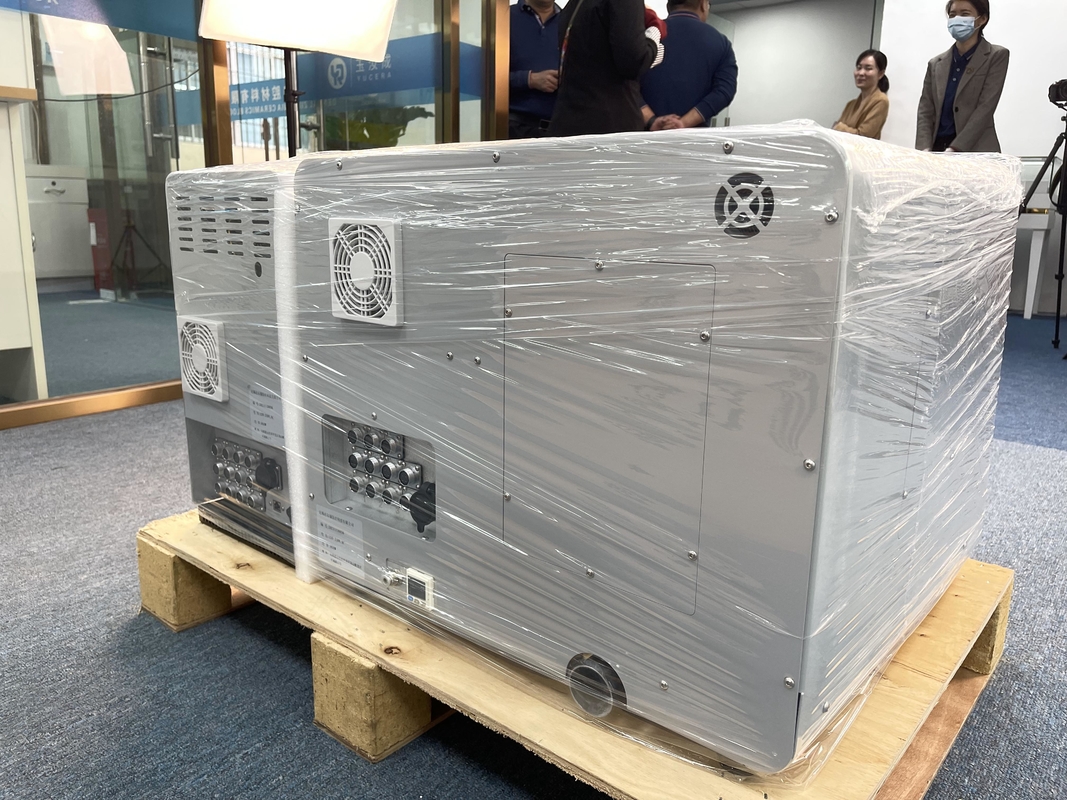

The Connection Board On The Back Of Dental 5-Axis Milling Machine
1.BUTT JOINT WITH CUTTING MACHINE 2.NETWORK POT 3.POWER SWITCH
4.POWER CONNECTION 5.BUTT JOINT WITH HOST
6.BAROMETER 7.AIR INLET 8.VACUUM PORT

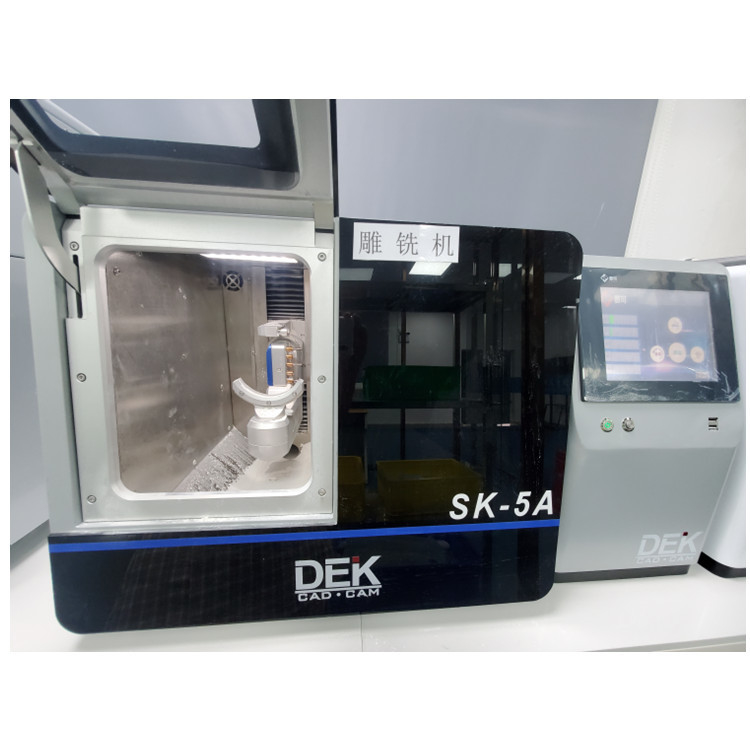

Working Cabin of Dental 5-Axis Milling Machine
1. Knife setter 2.Tool library 3.Blank fixture and rotating shaftA 4.Axis of rotationB 5.Blowpipe 6.Spindle
