| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YUCERA |
| Certification: | ISO/FDA/CE |
| Model Number: | SK-5A |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20/Month |
| Power: | 0.8kw | Net Weight: | 115KG |
|---|---|---|---|
| Cuting Machine Size: | 550x565x460mm | Mill Material: | Zirconia. Wax.resin. Composite Materials |
| Milling Precision: | 0.2mm | Rotation Angle: | A 360° B:+30° |
| Cut Method: | Dry Milling | Processing Method: | Five-axis Linkage, Manual Milling |
| High Light: | YUCERA CAD CAM Milling Machine,Dental Zirconia CAD CAM Milling Machine,Dental Crown zirconia milling machine |
||

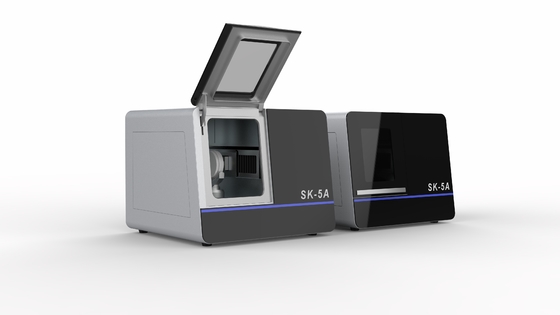

YUCERA Dental Crown Zirconia 5axis Cad Cam Milling Machine Dental Equipment/dental Open Cad Cam System
Our Services
All kinds raw material for dental cadcam milling:
1, milling burs for cadcam milling system;
2, zirconia blocks for overlay copping and full contour bridge;
3,wax for burnout;
4,PMMA for temporary denture;
5,Titanium & Cocr blank for cad cam milling;
6,dental alloy;
7,Polisher & grinder;
8,Disposable material for dental lab;
9,Equipments for dental clinic, and so on.
| Detailed specification of 5 axis dental milling machine: | |
| Axis | 5 Axis |
| Cut Method | dry milling |
| Milling Materials | zirconia block, pmma, wax, PEEK |
| Size of milling materials | φ98, thickness(10-30mm) |
| Range of rotation & tling rotation | x/y/z: 105 / 135/ 90 A:360° B:±30° |
| Speed of Principal axis | 0-60000rpm / 500w |
| Driver | Full rotation servo motor drive |
| cutters | 5 tools; φ4mm |
| size of dental 5aixs milling machine | CNC machine:55*56.5*46cm;Host milling machine:45*25*45cm |
| G.W: of dental 5aixs milling machine | CNC machine:95kg; Host milling machine:20kg |
| Compressed Air: | 4.5-7.5bar;50ml/min |
| Min Capacity-Dry: | 3000L/min |
| Power requirement : | 800W;220-230v AC,56/60 hz |
Packaging Details
Outer packaging: standard seaborne export plywood box. 2. Inner packaging: waterproof stretch film and plastic film.
To better ensure the safety of the machine , professional, environmentally friendly, convenient and efficient packaging services will be provided.
