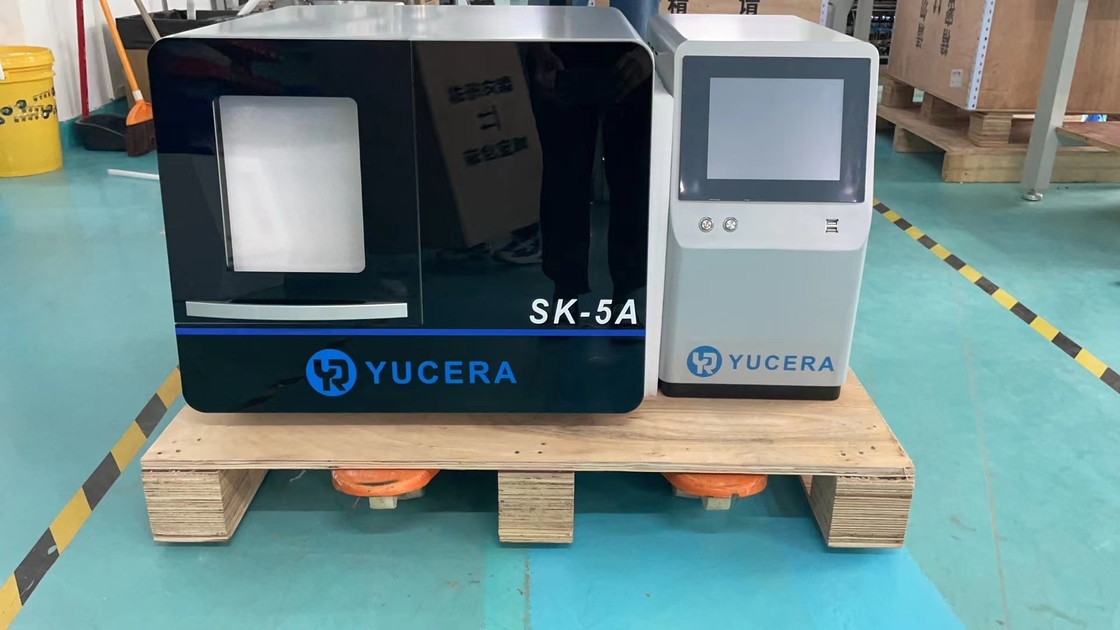

Lab Zirconia Dental Crown Milling Machine 5 Axis Open Cad Cam
Product Details
| Power: | 0.8kw | Net Weight: | 115KG |
|---|---|---|---|
| Rotation Angle: | A 360° B:+30° | Mill Material: | Zirconia. Wax.resin. Composite Materials |
| Cuting Machine Size: | 550x565x460mm | Processing Method: | Five-axis Linkage, Manual Milling |
| Milling Precision: | 0.2mm | Main Machine Size: | 450x250x450mm |
| Application: | Dental Milling Machine For Zirconia/PMMA/Wax/Peek Blocks | Cut Method: | Dry Milling |
| Highlight |
zirconia dental crown milling machine,5 axis dental crown milling machine,5 axis dental lab milling machine |
||
Product Description
Hot Sale Cheap Good Quality Dental Lab Zirconia Open Cad Cam Milling Machine 5 Axis Dental Milling Machine
Advantages of dental lab open cad cam system dry zirconia milling machine
Open system ; Strong stability;High precision and efficiency ; Rarely meet problems and no need calibration;Good feedbacks from Clients; 24 hours continuously working.
Our Services
All kinds raw material for dental cadcam milling:
1, milling burs for cadcam milling system;
2, zirconia blocks for overlay copping and full contour bridge;
3,wax for burnout;
4,PMMA for temporary denture;
5,Titanium & Cocr blank for cad cam milling;
6,dental alloy;
7,Polisher & grinder;
8,Disposable material for dental lab;
9,Equipments for dental clinic, and so on.
| Detailed specification of 5 axis dental milling machine: | |
| Axis | 5 Axis |
| Cut Method | dry milling |
| Milling Materials | zirconia block, pmma, wax, PEEK |
| Size of milling materials | φ98, thickness(10-30mm) |
| Range of rotation & tling rotation | x/y/z: 105 / 135/ 90 A:360° B:±30° |
| Speed of Principal axis | 0-60000rpm / 500w |
| Driver | Full rotation servo motor drive |
| cutters | 5 tools; φ4mm |
| size of dental 5aixs milling machine | CNC machine:55*56.5*46cm;Host milling machine:45*25*45cm |
| G.W: of dental 5aixs milling machine | CNC machine:95kg; Host milling machine:20kg |
| Compressed Air: | 4.5-7.5bar;50ml/min |
| Min Capacity-Dry: | 3000L/min |
| Power requirement : | 800W;220-230v AC,56/60 hz |
FAQ
1.How can you guarantee the production quality ?
We have strictly quality control system in our production process. We have 3 times inspection for each finished product before package
2.How about the Packing?
One set machine is packaged in one wooden case.
3.Do you offer the certification?
Yes,the CE and ISO is available.
4.Which shipment way is available with you?
It is ok to make delivery by sea / by air and by Express.
5.How about the payment?
We can accept 100%T/T WU and Paypal.But must received your whole payment before delivery.

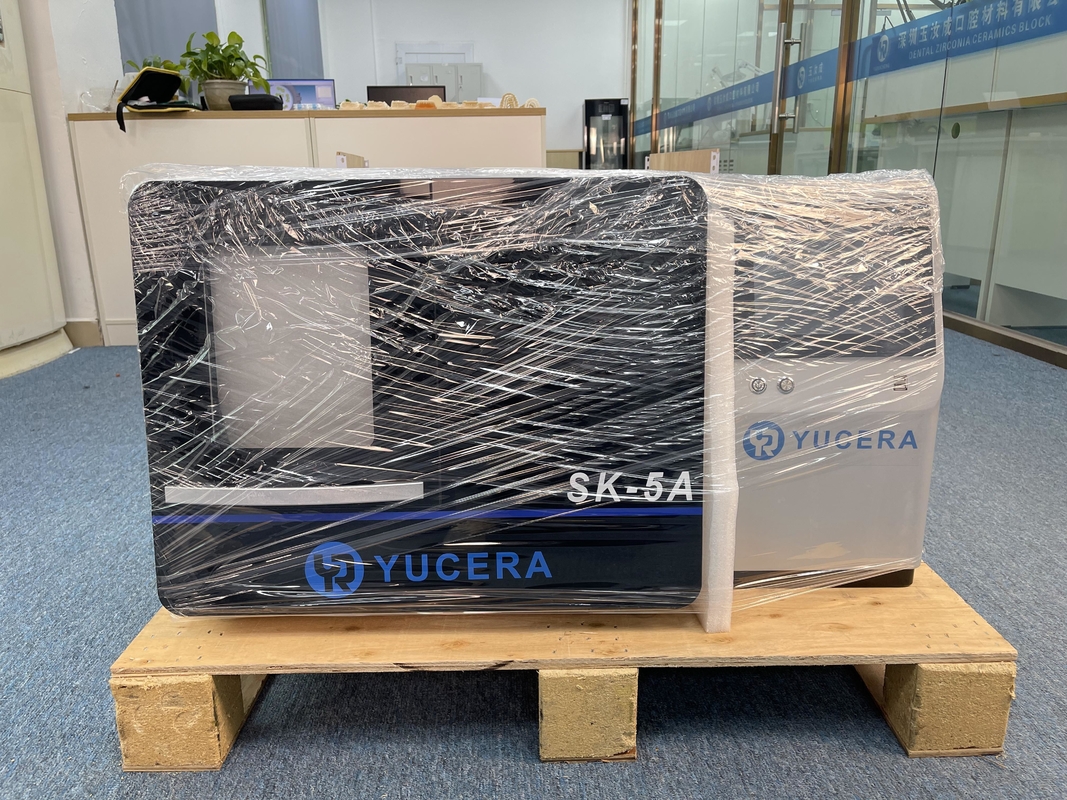

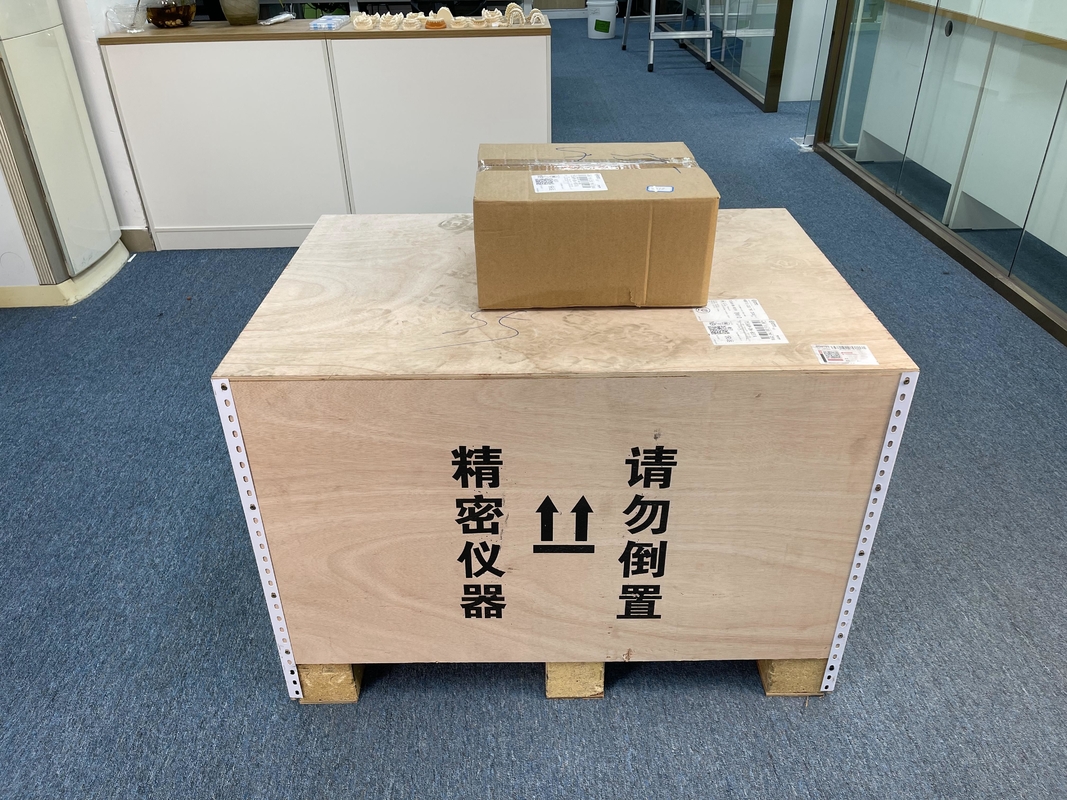

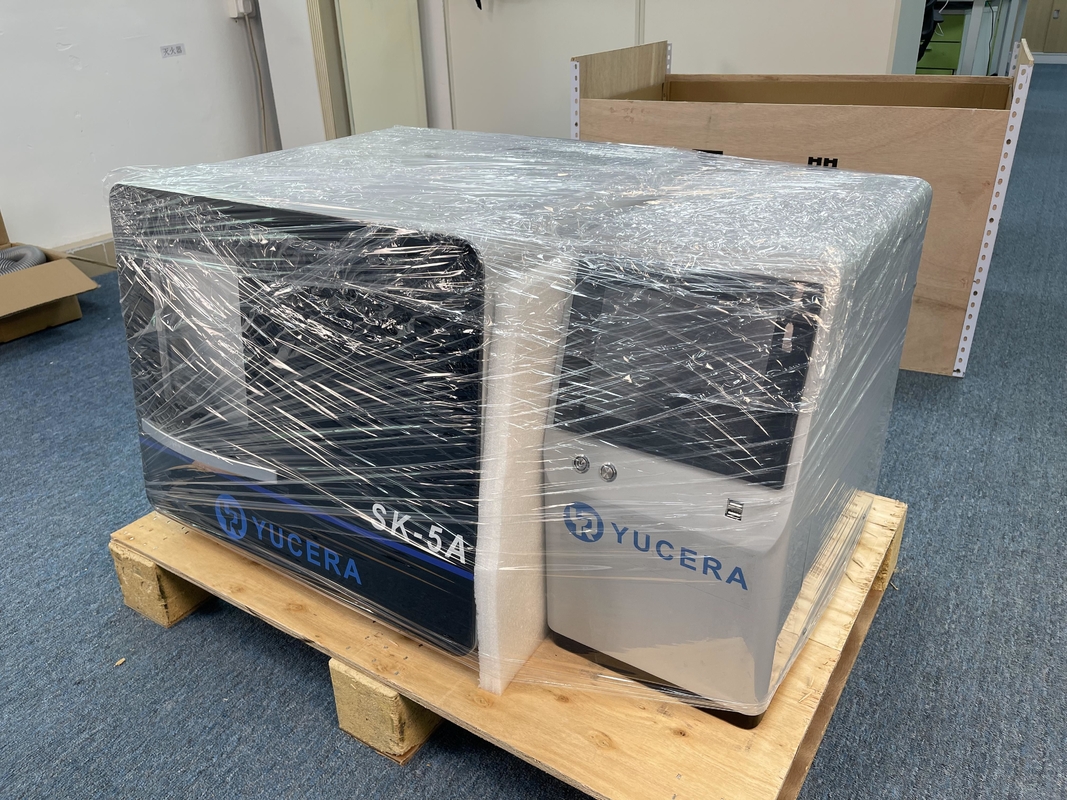

Packaging Details
1.Outer packaging: standard seaborne export plywood box. 2. Inner packaging: waterproof stretch film and plastic film.
To better ensure the safety of the machine , professional, environmentally friendly, convenient and efficient packaging services will be provided.
