Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam Prices

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam Prices

5 Axis Dental Milling Machine

Prices 5 Axis Dental Milling Machine

Place of Origin:

shenzhen

Brand Name:

YUCERA

Model Number:

SK-5A

Contact Us
Request A Quote
Product Details
Power Source:
Electricity
Warranty:
1 Year
After-sale Service:
Online Technical Support
Material:
Metal, Steel
Shelf Life:
2 Years
Quality Certification:
Ce
Instrument Classification:
Class I
Safety Standard:
MFDS
Type:
5 Axis Dental Milling Machine
Weight:
Cutting Machine:95KG Main Engine:20KG
Rotating Axis Operating Angle:
A:360° B:±30° CNC Machining
Total Power:
800W Milling Machine
Cutting Precision:
0.2mm Dental Milling Machine 5 Axis
Tool Magazine Capacity:
5 Milling Machine Tools
Highlight:

5 Axis Dental Milling Machine

,

Prices 5 Axis Dental Milling Machine

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
$10,000-14,000 / piece
Product Description
Product Description



dental laboratory equipment and 5 axis dental milling machine up3d p52 dental milling machine cad cam  prices

Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 0

Characteristics for 5 axes dental milling machine :

After 2 years of design and development, more than 100 dental labs tested, our Separation of mechanical and electrical control design to get unanimous praise:

1. Horizontal processing speed can be increased by nearly 20%

2. simplifying maintenance- When the all-in-one machine fails, the after-sales maintenance is more complicated. The split equipment only needs to replace the processing system to complete the update and maintenance;

3. Tool detection sensor with 2um

4.24hours online technical support
5.include hyperdent(free)

Detailed specification of 5 axis dental milling machine:
Axis  5 Axis
Cut Method  dry milling
Milling Materials zirconia block, pmma, wax, PEEK
Size of milling materials φ98, thickness(10-30mm)
 Range of rotation & tling rotation  x/y/z: 105 / 135/ 90  A:360° B:±30°
 Speed of Principal axis  0-60000rpm / 500w
 Driver  Full rotation servo motor drive
cutters 5 tools; φ4mm
size of dental 5aixs milling machine CNC machine:55*56.5*46cm;Host milling machine:45*25*45cm
G.W: of dental 5aixs milling machine CNC machine:95kg; Host milling machine:20kg
Compressed Air: 4.5-7.5bar;50ml/min
Min Capacity-Dry: 3000L/min
Power requirement : 800W;220-230v AC,56/60 hz



Packaging & Shipping



Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 2Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 4Dental Laboratory Equipment and 5 Axis Dental Milling Machine Dental Milling Machine Cad Cam  Prices 6

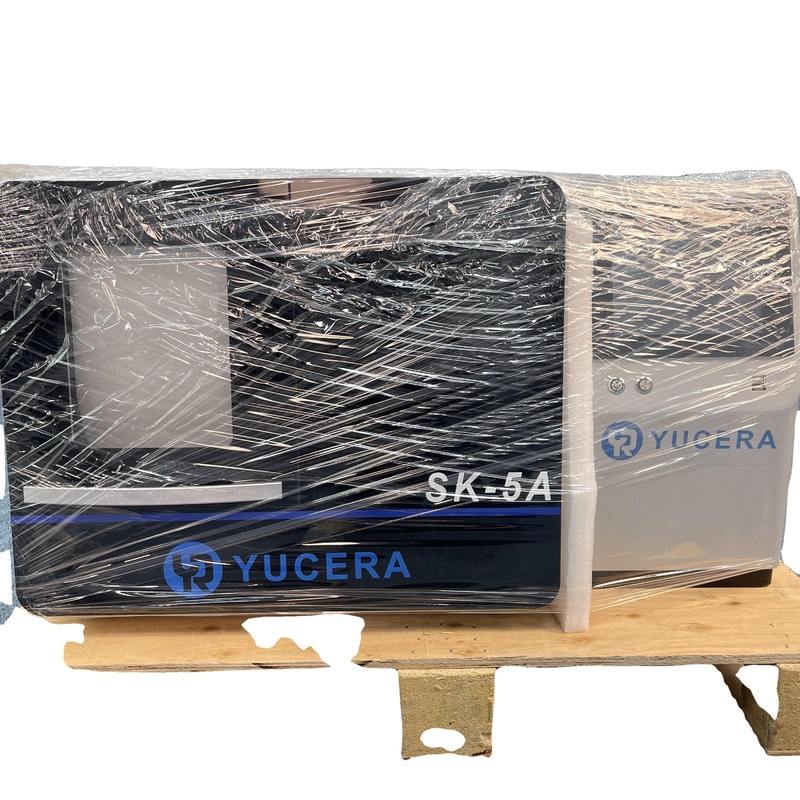

Blocks packed with carton box and polyfoam inside. Outside one more big box and waterproof membrane.

We will send out the product after 15 days from we receive the formal contract and front money.
